SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Backlight Type: MULTICOLOR

Battery Included: Yes

EPOMAKER Model: Carbon60

Full Size keyboard: No

High-concerned chemical: None

Interface Type: USB

Keyboard Standard: 61 Keys

Keycup material: Abs plastic

Keycup printing: Doublshot

Language: English

Operation Style: Mechanical

Package: Yes

Style: Standard

Switches Hot swap: Yes

Switches manufacturer: GATERON

Type: 2.4Ghz Wireless

Wrist Support: No

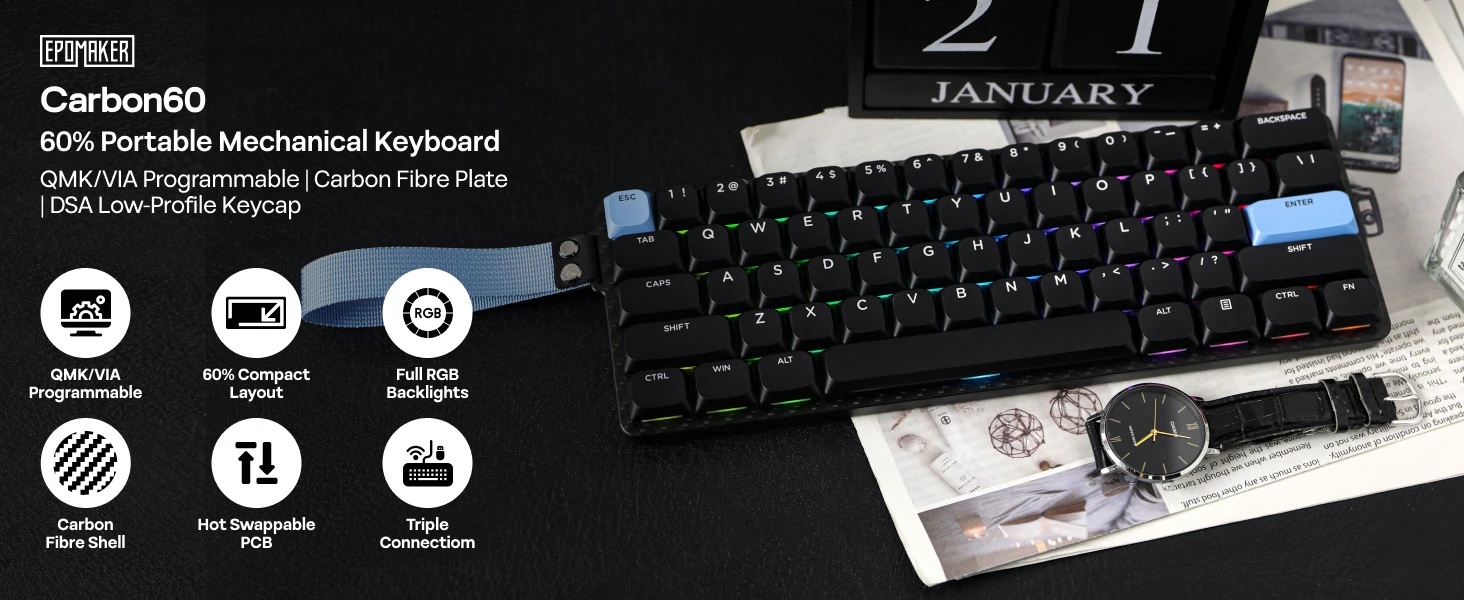

EPOMAKER Carbon60 60% QMK/VIA ANSI VIA Type-C Wired/Bluetooth 5.0/2.4GHz Wireless Portable Mechanical Keyboard Carbon Fiber Case

The DSA low-profile double-shot keycaps enhance comfort while typing. Their unique design and material provide durability and a satisfying tactile response, making long typing sessions enjoyable.

-Per-key South-facing RGB Lights

-QMK/VIA Programmable

-Flexible Triple Modes Connectivity

-Space-saving 61-key layout

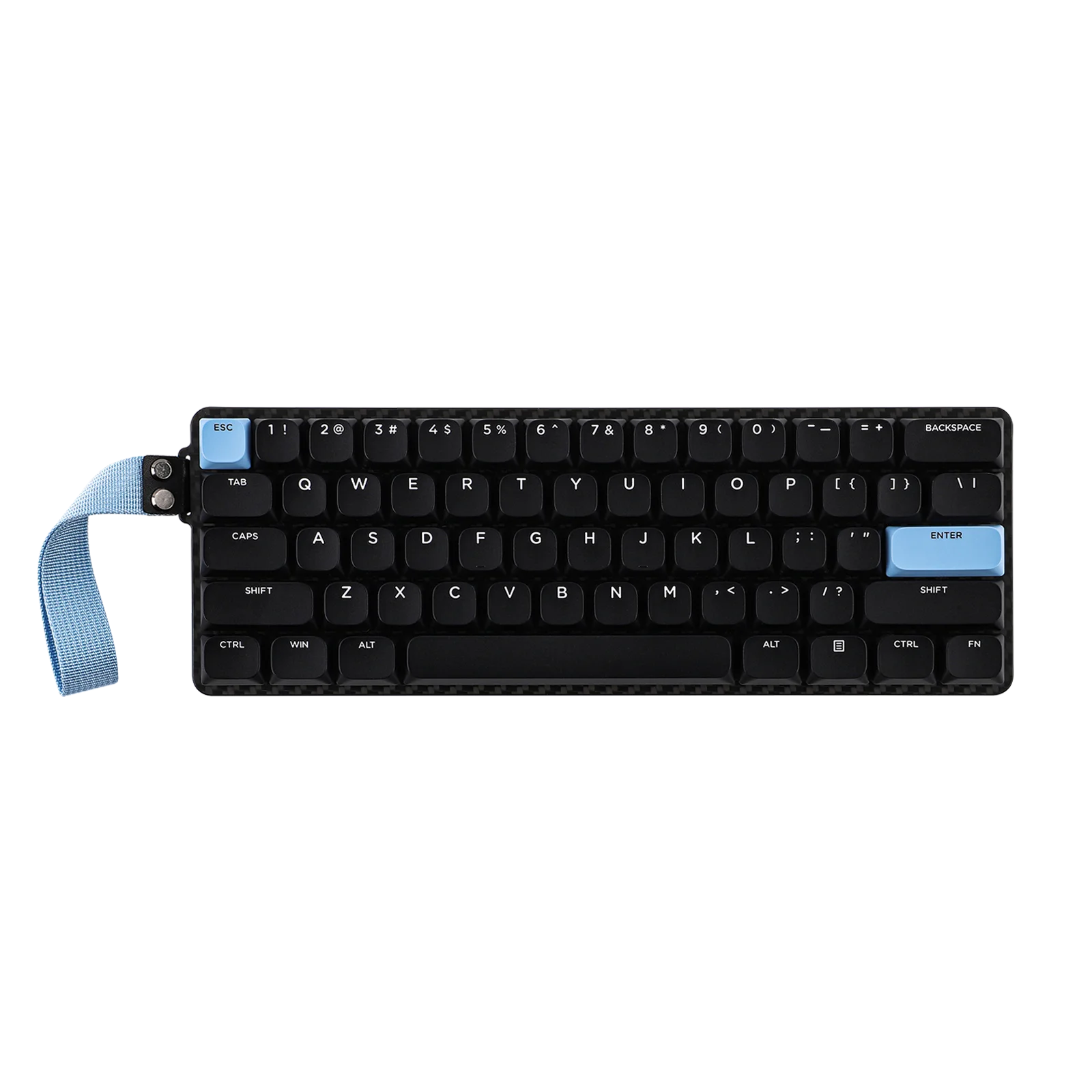

Compact Design Meets Functionality

The Epomaker Carbon60 features a space-saving 61-key layout, perfect for minimalist setups. Its compact design helps maximize your workspace while retaining essential functionality, making it ideal for both office and home use.

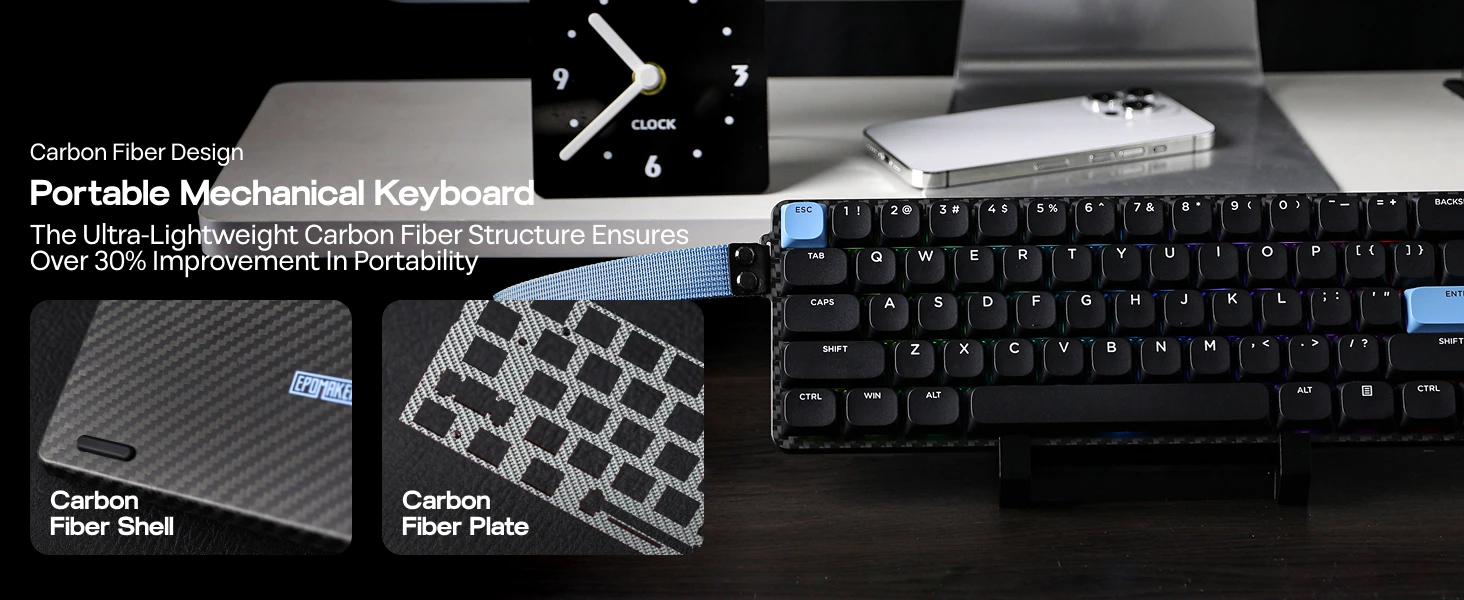

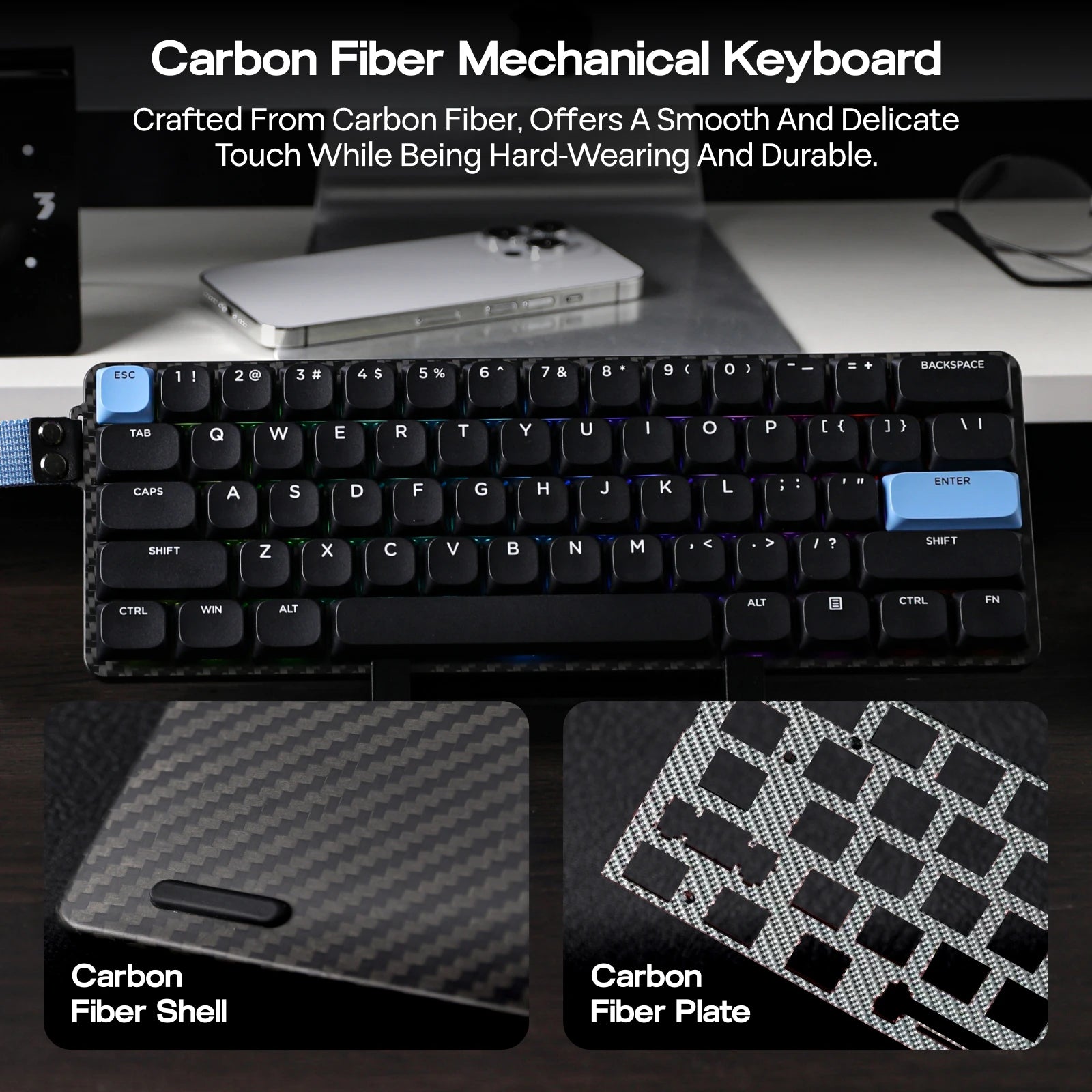

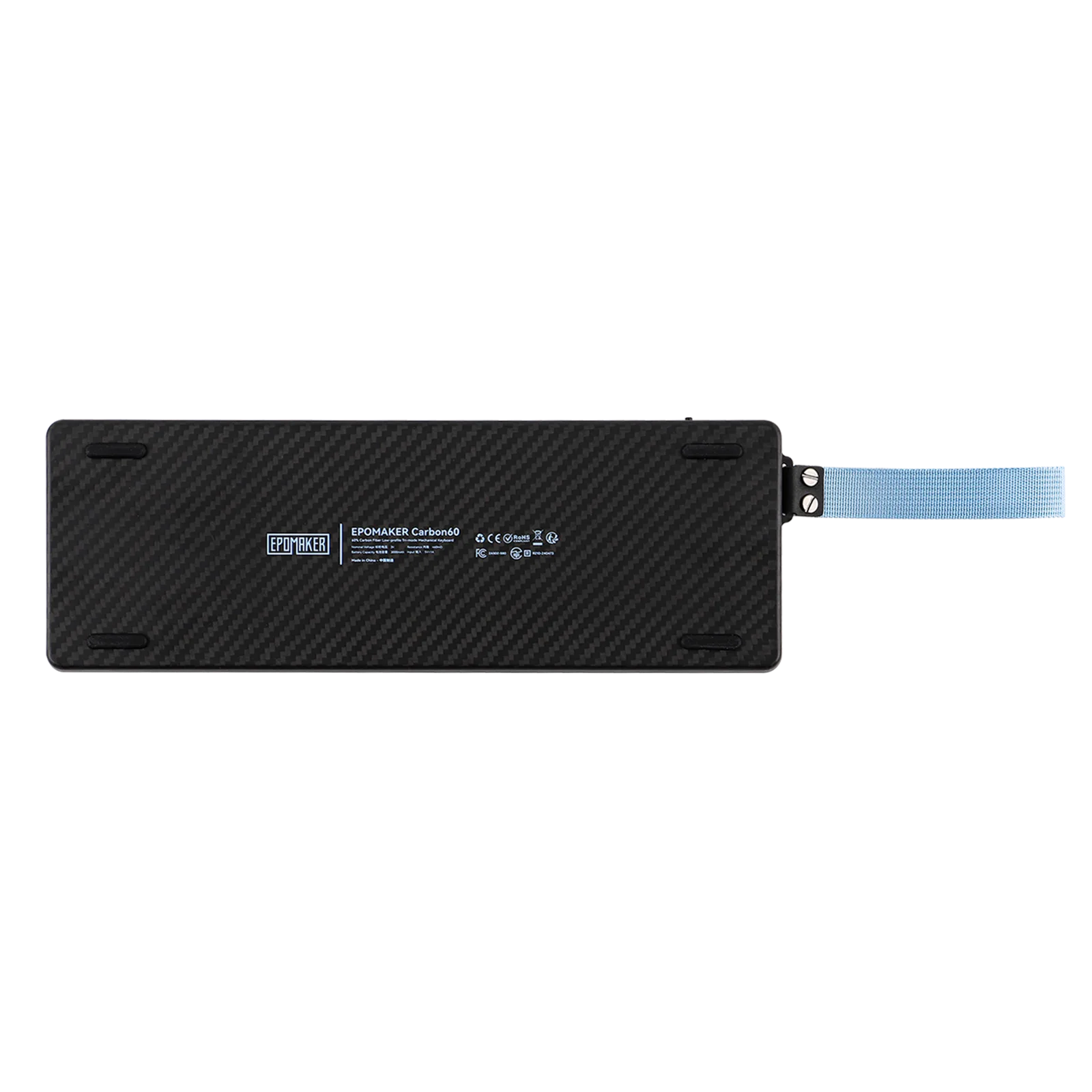

Durable Carbon Fiber Case

Crafted with a carbon fiber case and a stylish spray paint finish, the Carbon60 not only looks modern but also promises durability and longevity. This solid construction ensures it can withstand daily use without compromising on style.

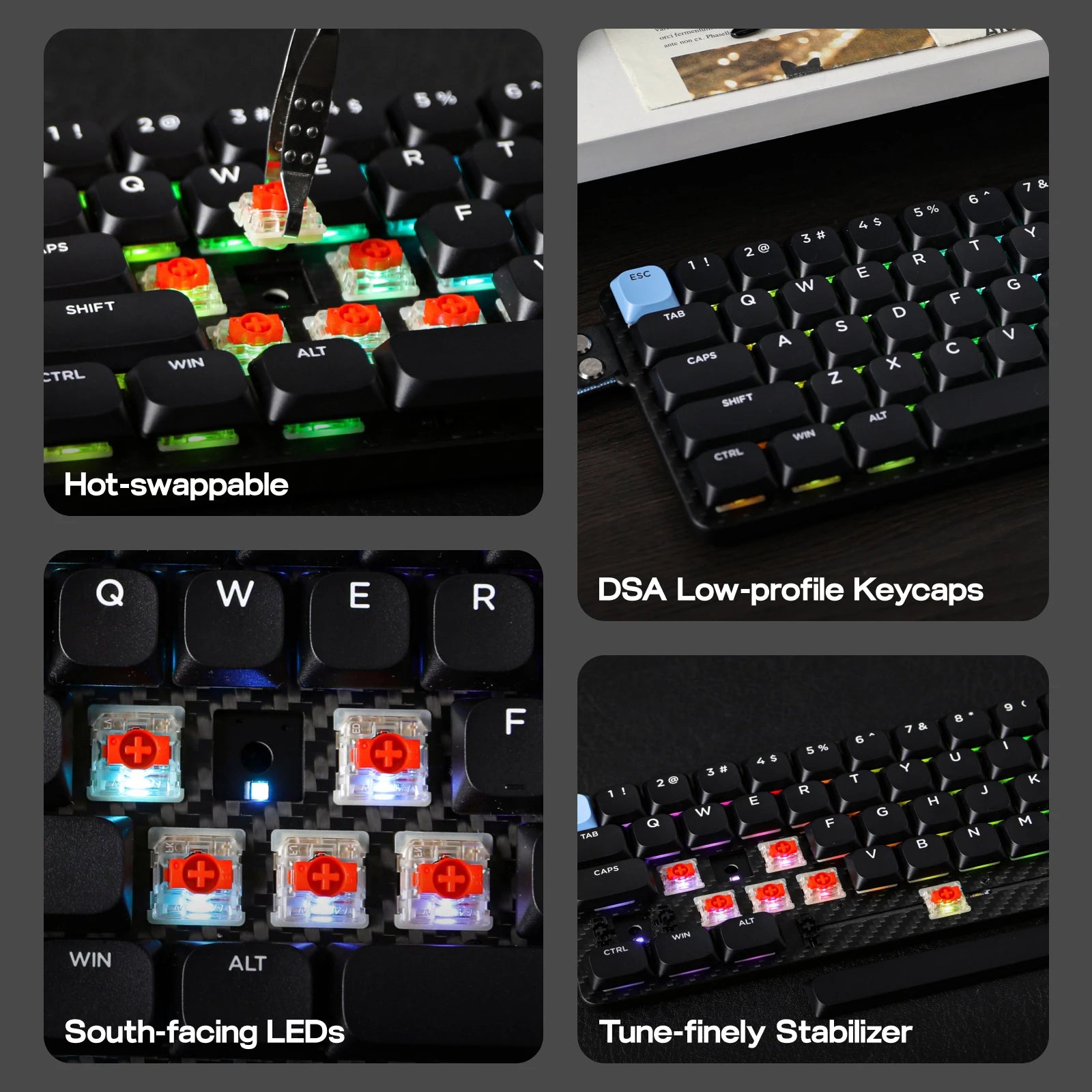

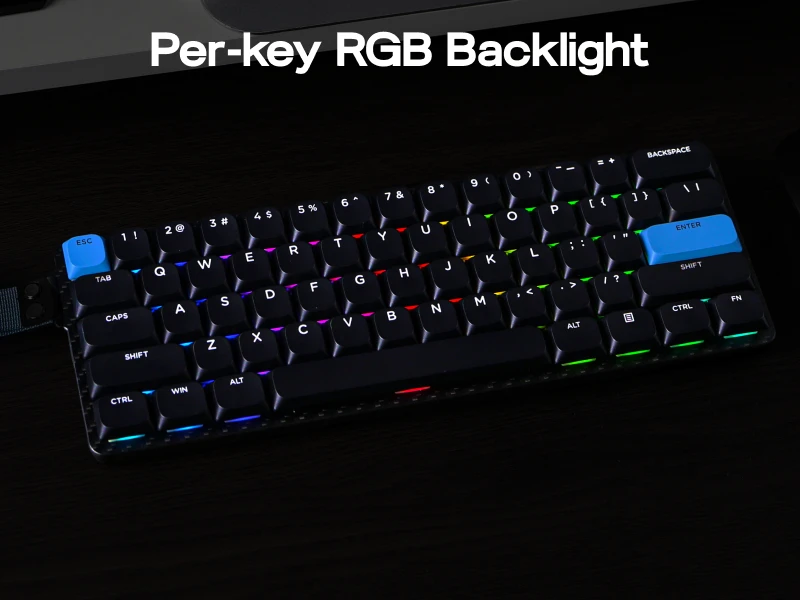

Per-key South-facing RGB Lights

Enjoy a personalized typing experience with per-key south-facing RGB lighting. The Carbon60 accommodates diverse lighting preferences, allowing you to adjust your keyboard’s aesthetic while ensuring maximum visibility of the key legends.

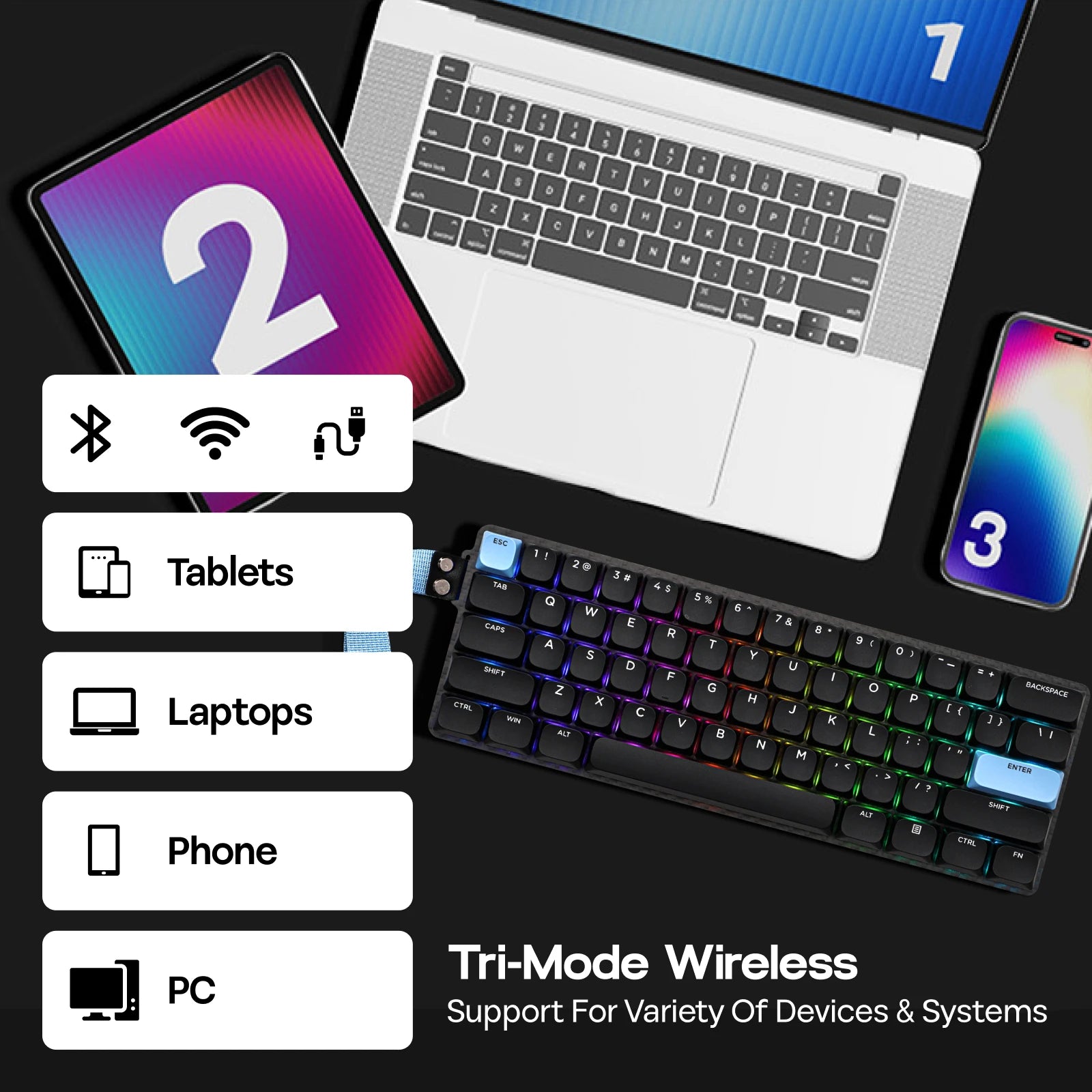

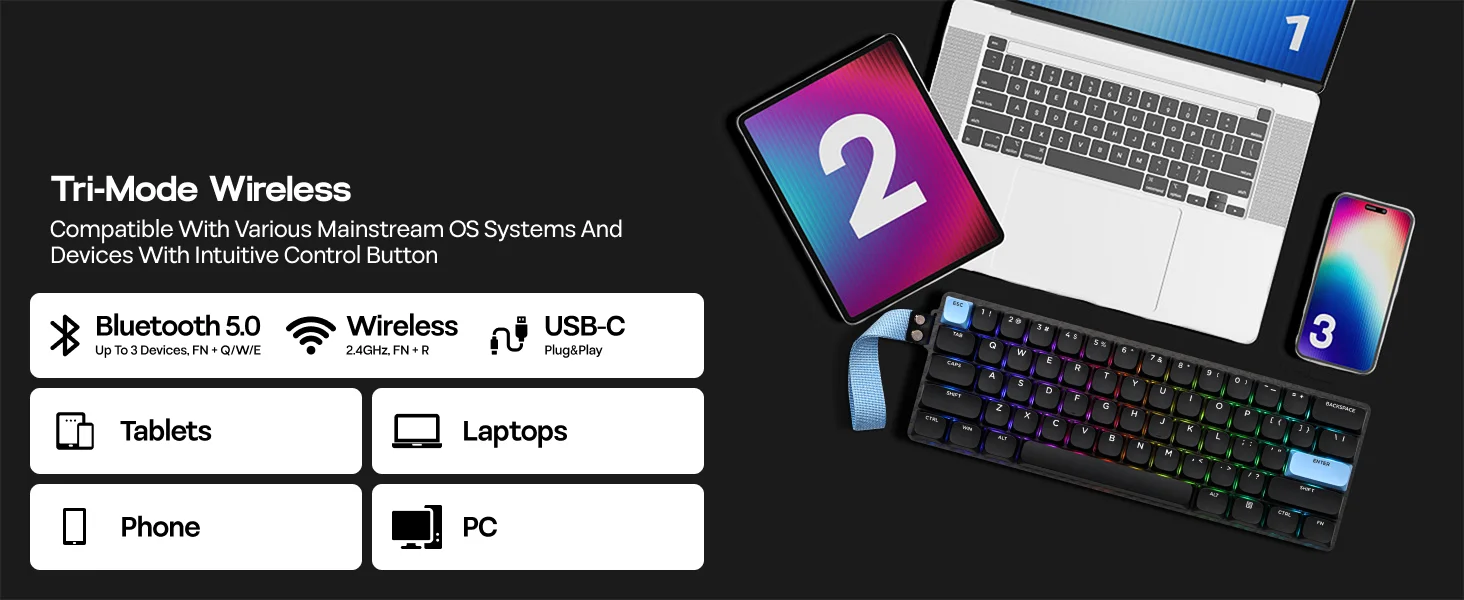

Flexible Triple Modes Connectivity

Stay connected seamlessly with triple modes of connectivity (USB-C, Bluetooth, and 2.4GHz wireless). With a robust 3000mAh battery, transitioning between devices has never been easier—perfect for on-the-go users.

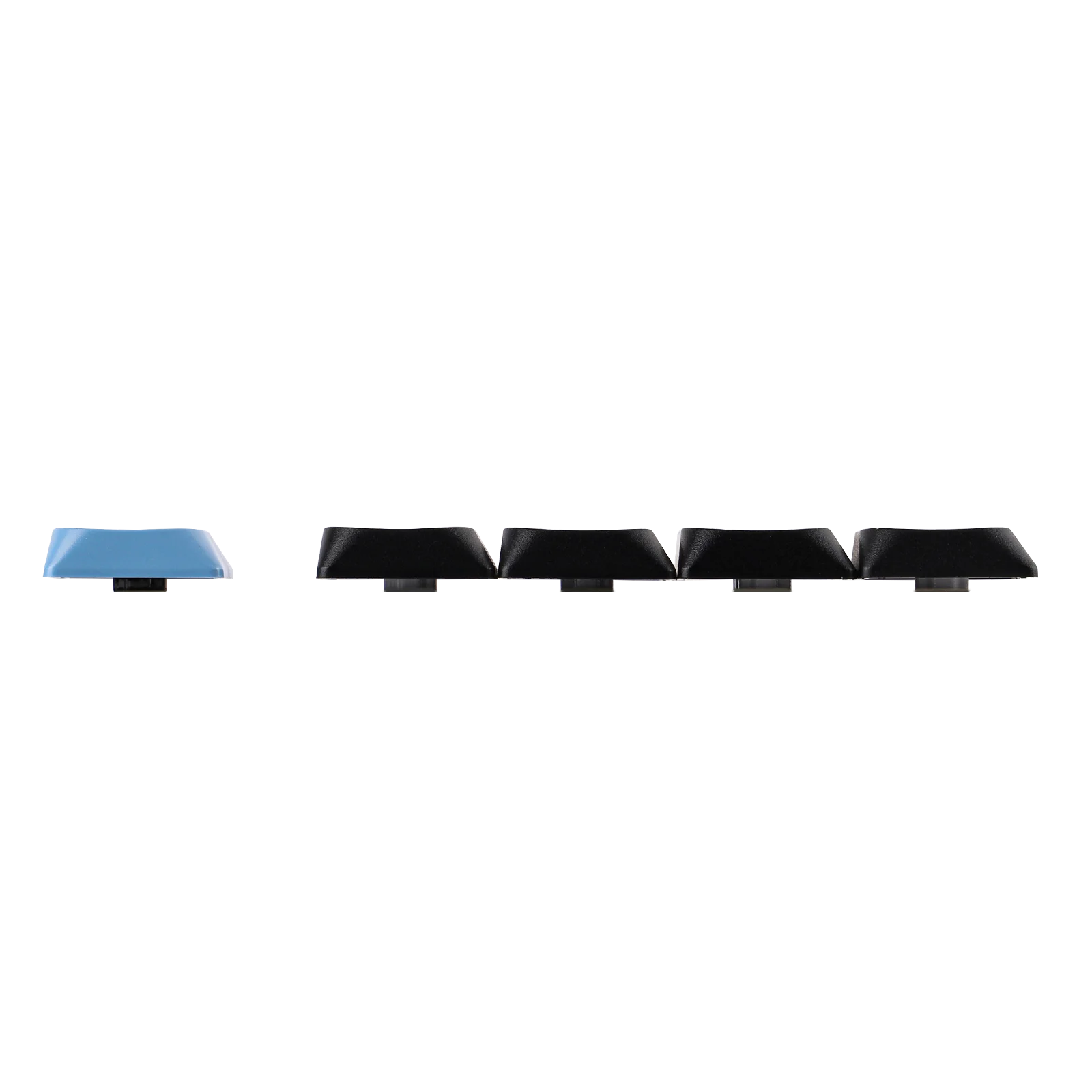

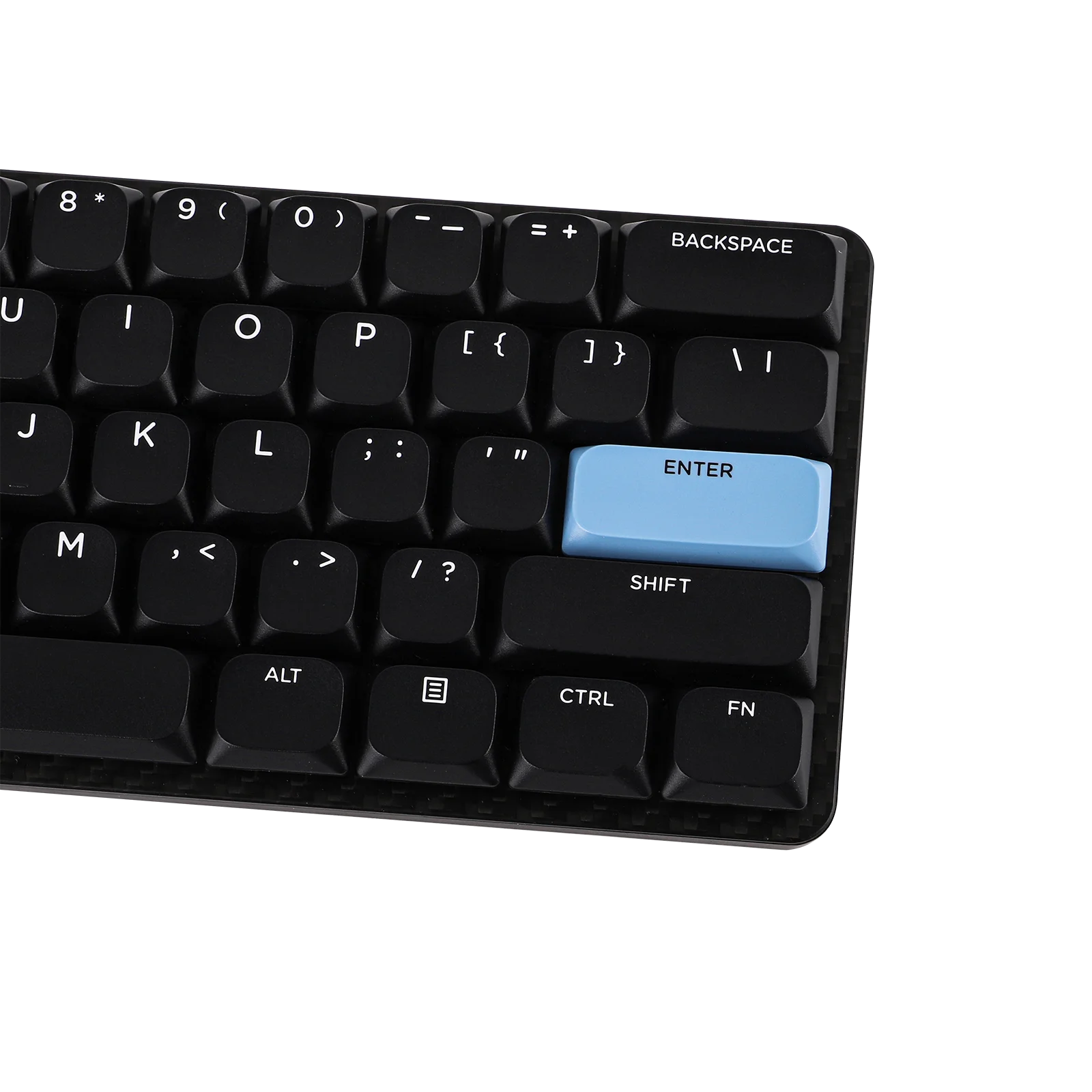

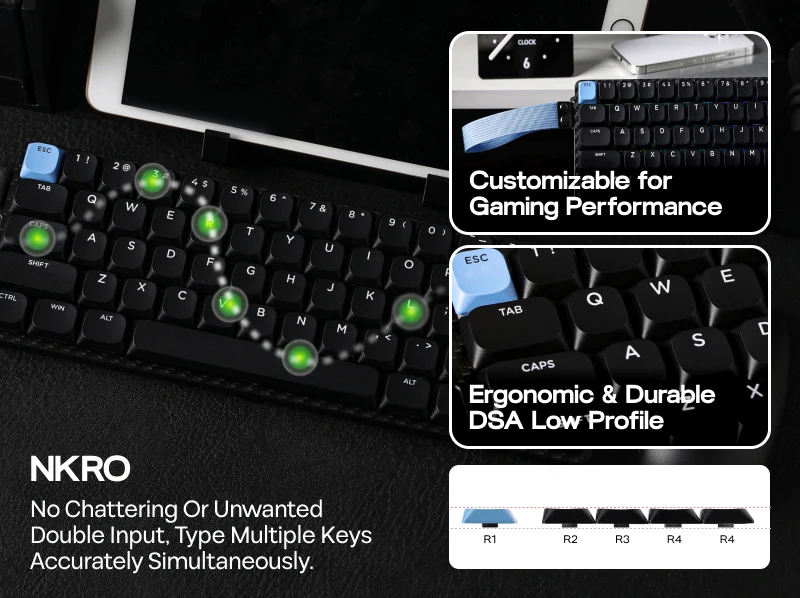

DSA Low Profile Keycaps

The DSA low-profile double-shot keycaps enhance comfort while typing. Their unique design and material provide durability and a satisfying tactile response, making long typing sessions enjoyable.

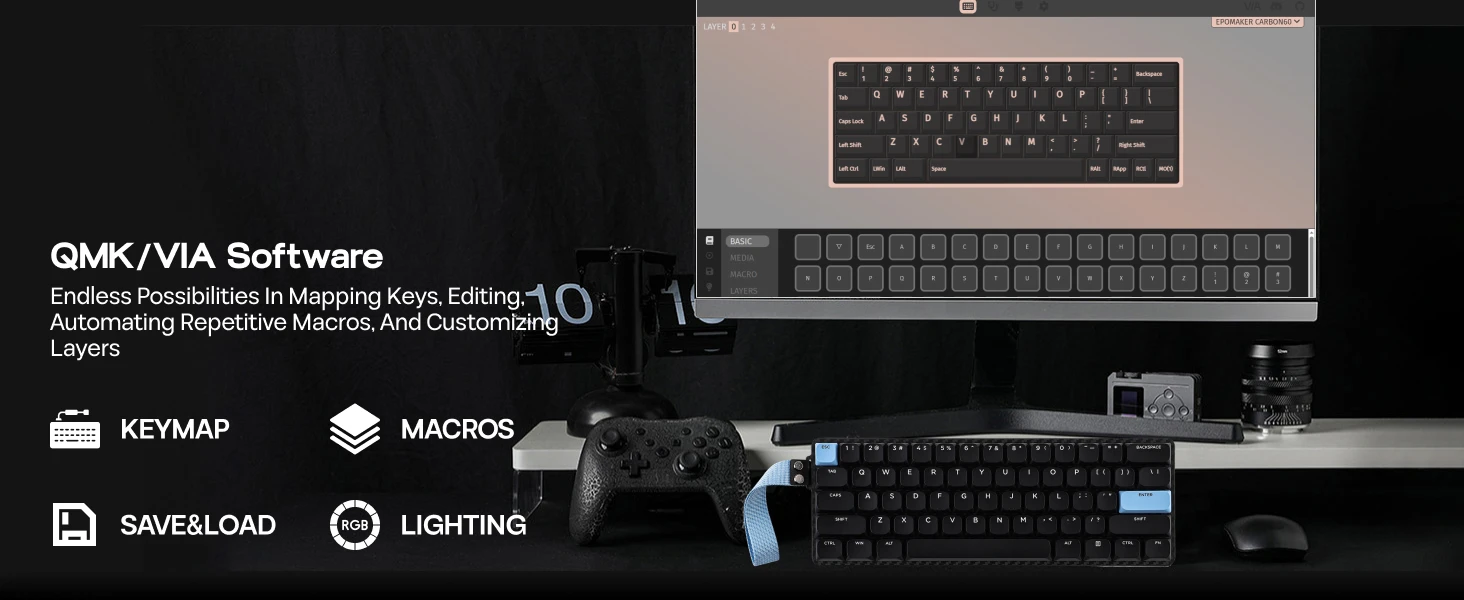

QMK/VIA Programmable

Utilize the capabilities of QMK/VIA programmability to customize your keyboard layout. Whether you are a gamer or a professional, tailor the Carbon60 to match your personal preference and workflow for improved productivity.

Specifications:

Brand: EPOMAKER

Model: Carbon60

Layout: 60% ANSI US Layout

Number of Keys: 61 Keys

Connectivity: Type-C Cable, 2.4GHz, Bluetooth 5.0

Compatibility: Mac/WIN/Linux

Battery: 3000mAh

Battery Life: 23.6 hours with Backlight on, and 176.4 hours with Backlight off.

Case Material: Carbon Fiber

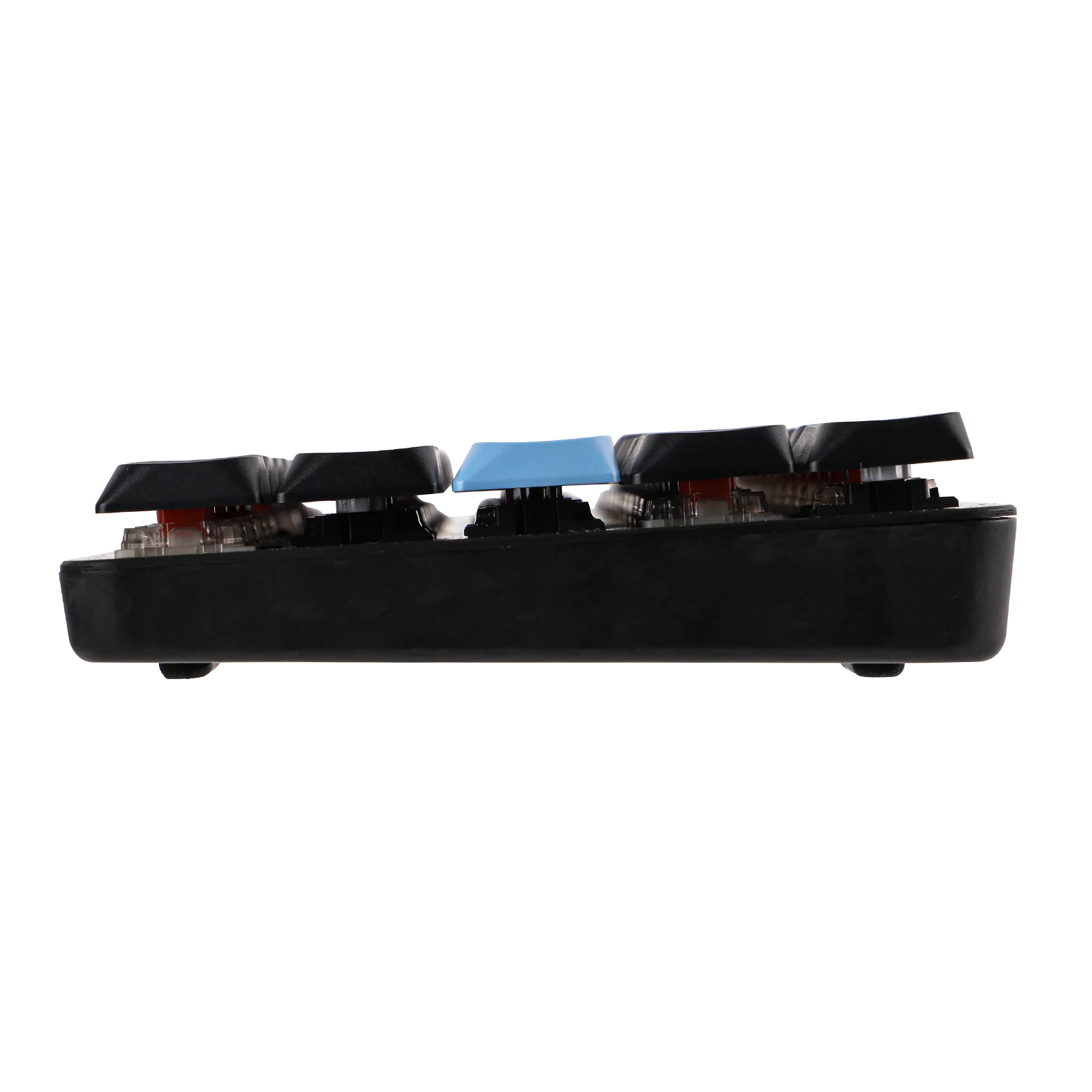

Front Height: 22.5mm

Back Height: 26.7mm

Flex-Cut: No Flex-Cut

Plate Material: Carbon Fiber

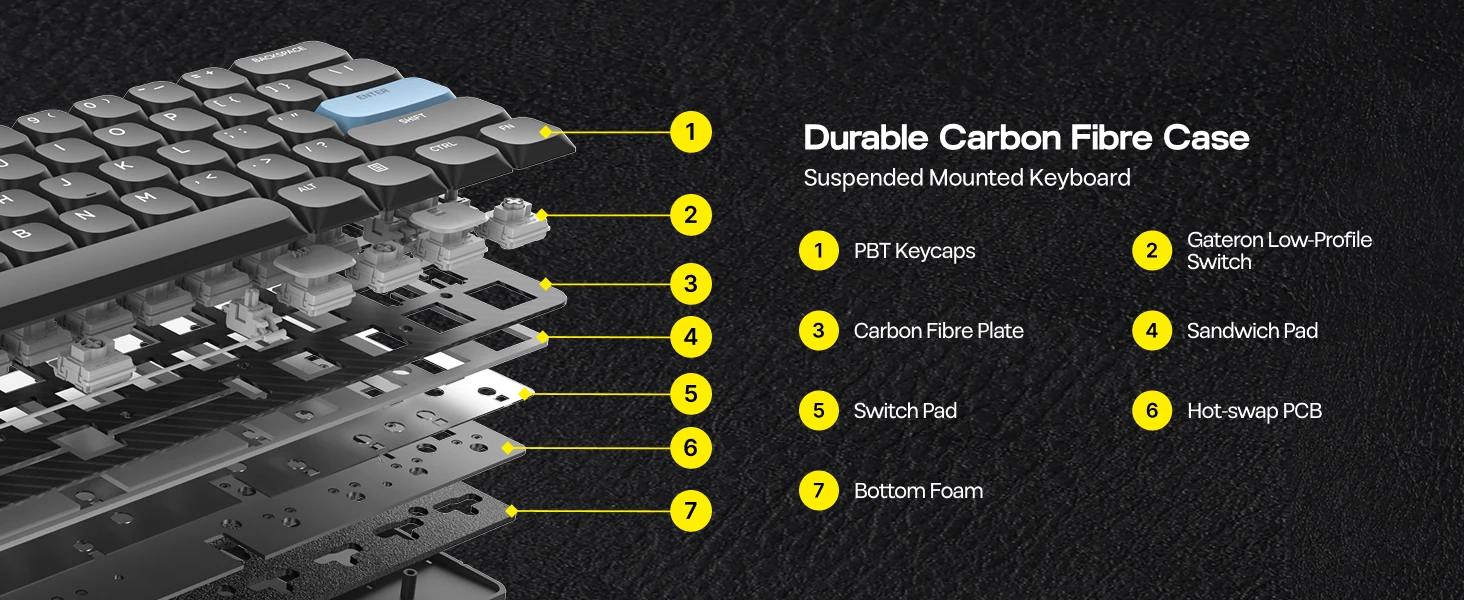

Sound Dampening: 3 layers: Sandwich Pad, Switch Pad, Bottom Foam

Keycaps Profile: DSA Low Profile

Keycaps Material: ABS Plastic

Keycaps Manufacturing technique: Double-Shot/Dye-sub (ESC & Enter)

Hot swappable: Yes

RGB: South-facing, per-key RGB

Polling Rate: 1000Hz (USB, 2.4Ghz), 125Hz (Bluetooth 5.0)

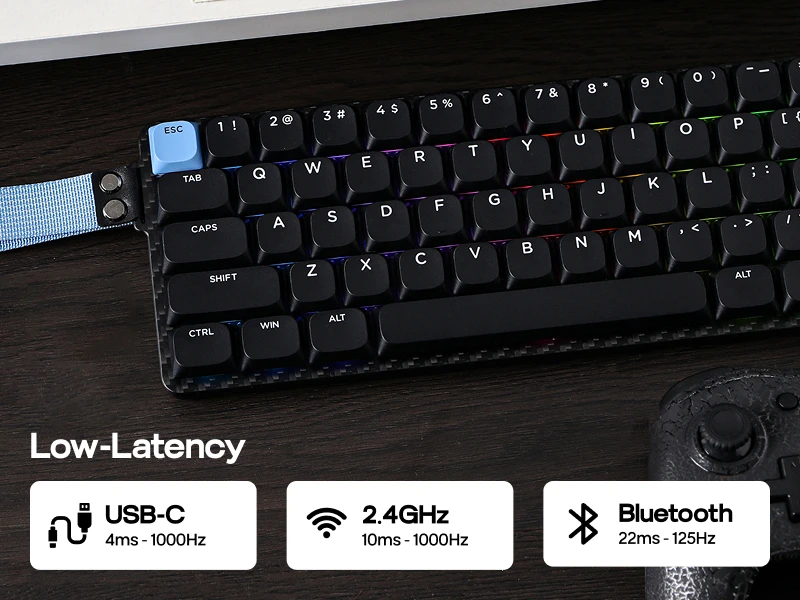

Latency: 4ms (USB), 10ms (2.4Ghz wireless), 22ms (Bluetooth 5.0)

Anti-Ghosting: N-Key Rollover(Win)/6-Key Anti-Ghosting(Mac)

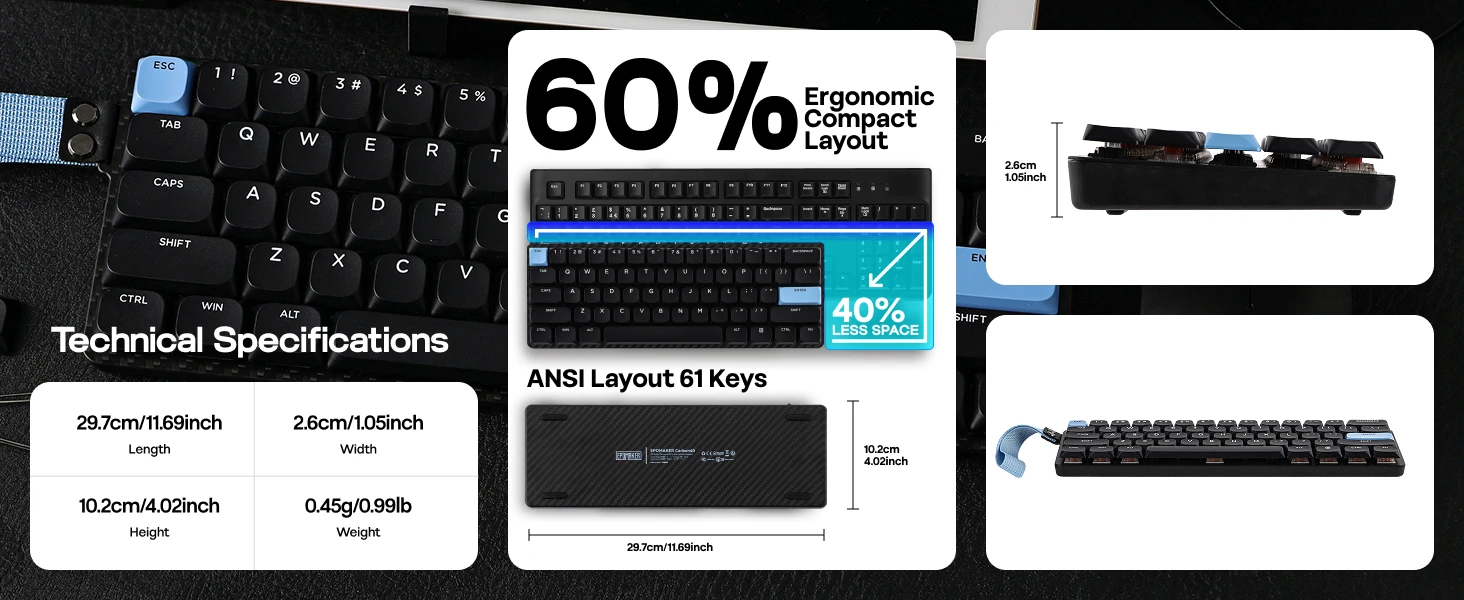

Keyboard Dimensions: 297*102.3*26.7mm

Keyboard Weight: 0.5kg

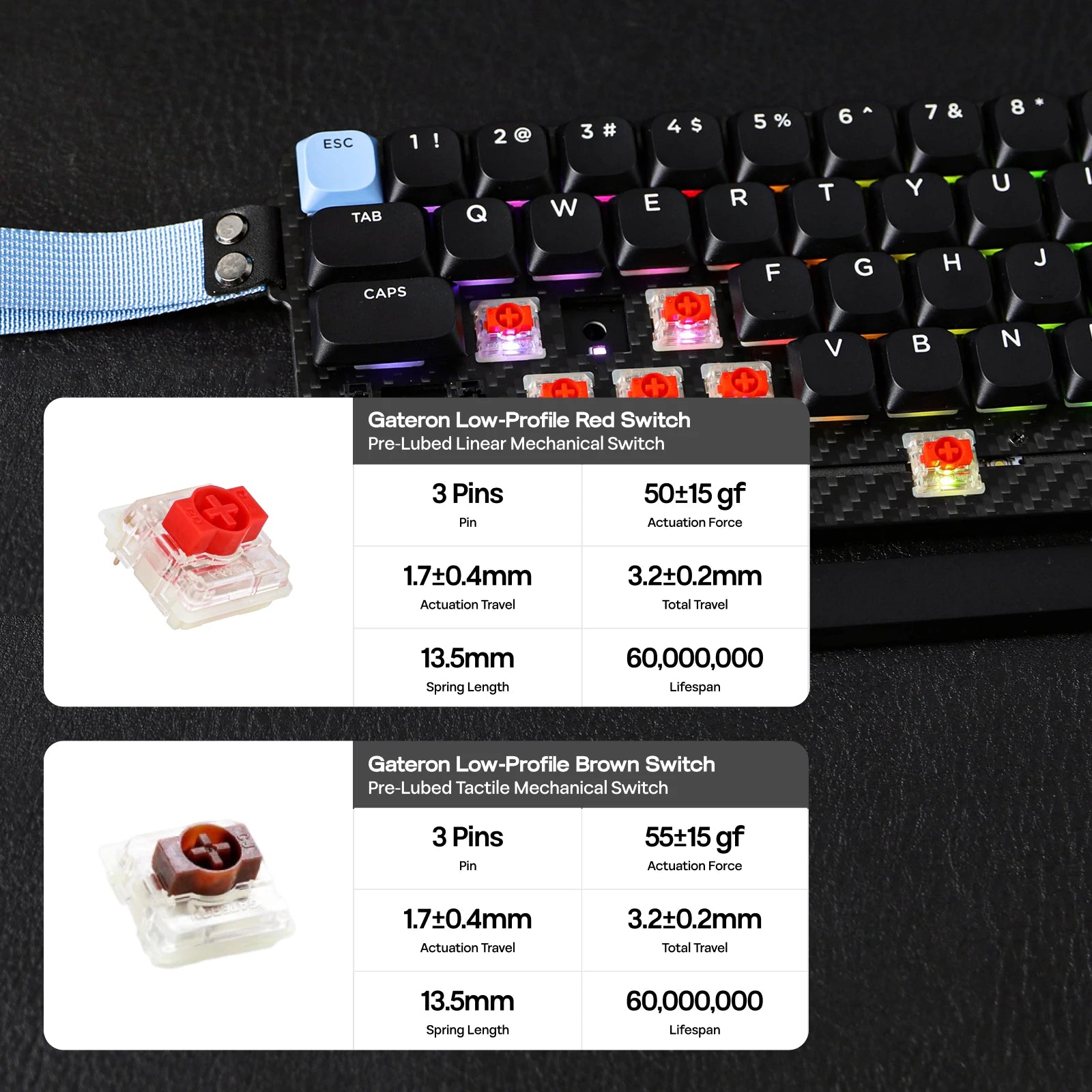

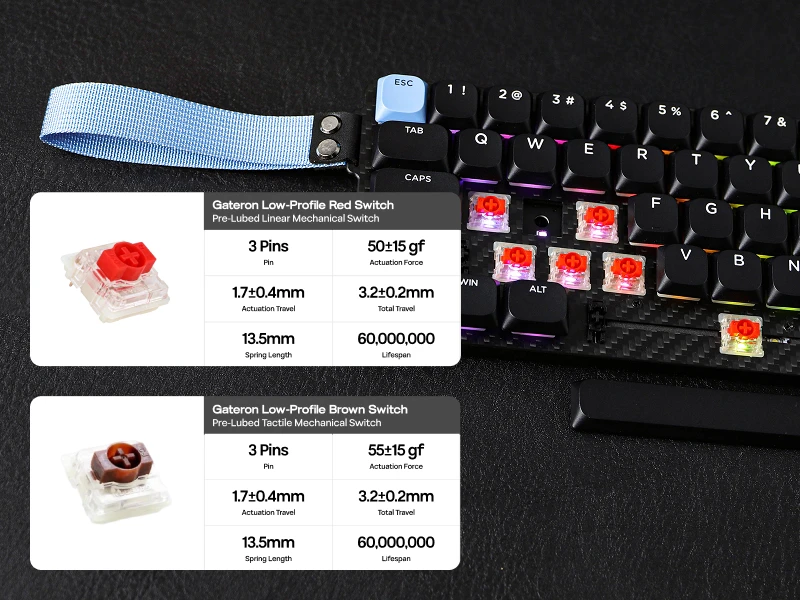

Specifications for Gateron Low Brown Switch 2.0:

Switch Type: 3-pin Tactile

Operting Force: 55±15gf

Bottom-out Force: 60±5gf

Pre-travel: 1.7±0.4mm

Total Travel: 3.2+0.2mm

Stem: POM

Top housing: PC

Bottom housing: Nylon PA66

Spring: 13.5mm two-stage spring

Factory lubed: Yes

Specifications for Gateron Low Red Switch 2.0:

Switch Type: 3-pin Linear

Operting Force: 50±15gf

Bottom-out Force: 60±5gf

Pre-travel: 1.7±0.4mm

Total Travel: 3.2+0.2mm

Stem: POM

Top housing: PC

Bottom housing: Nylon PA66

Spring: 13.5mm two-stage spring

Factory lubed: Yes

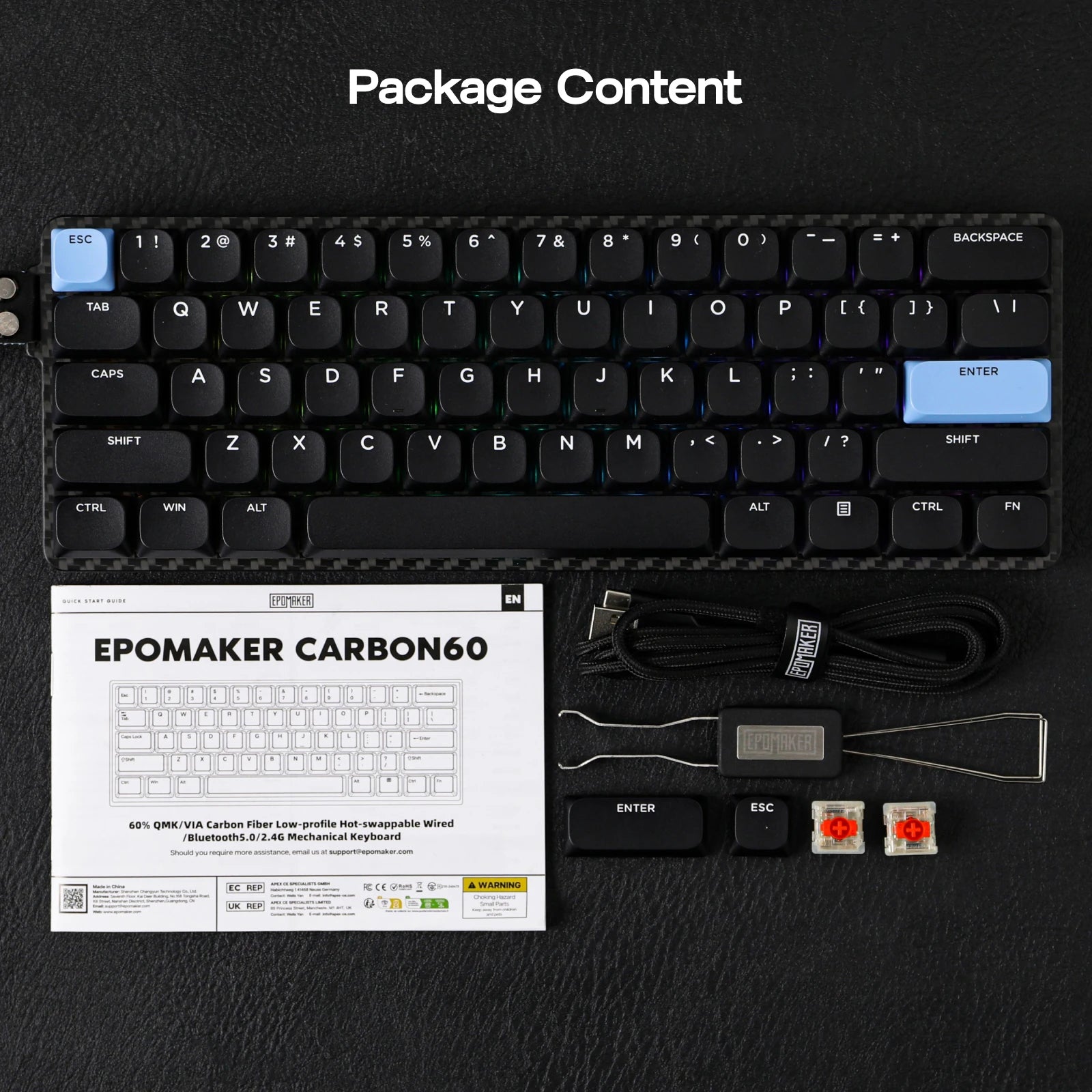

Inside the Box:

-Keyboard*1

-Type-C Cable*1

-User Manual*1

-Keycap Puller*1
